Motorola Solutions

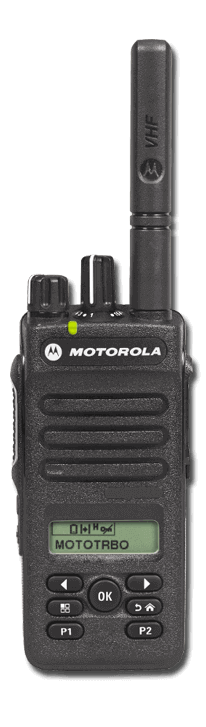

XPR3000e
With this dynamic evolution of MOTOTRBO™ digital two-way radios, you're better connected, safer and more efficient. The XPR™ 3000e Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organization.
Here's what's new in these next-generation radios:
- Integrated Wi-Fi
- Over-the-air software updates
- Bluetooth® audio
- Enhanced audio quality
- Improved expandability
- Better battery life (up to 28 hours)
- Better range (up to 8%)
- Better waterproofing (IP67)
- HazLoc models available
XPR 3000e Series radios include:
XPR 3500e: Monochrome display, limited keypad
XPR 3300e: No display or keypad
XPR 3500e: Monochrome display, limited keypad
XPR 3300e: No display or keypad
Performance Characteristics
Frequency Band:
VHF, UHF
Frequency Range:
VHF: 136-174 MHz
UHF: 403-527 MHz
Power Output:
1W/4W – UHF
1W/5W – VHF
Number of Channels/Groups/Zones:
16 / 128 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Digital/Analog Battery Life, Slim 1600 mAh Battery
XPR 3500e VHF: 16.0/11.5 hours
XPR 3500e UHF: 15.0/11.5 hours
XPR 3300e VHF: 16.0/11.5 hours
XPR 3300e UHF: 15.0/11.5 hours
Digital /Analog Battery Life, Low Voltage 3000 mAh Battery:
XPR 3500e VHF: 28.5/21.0 hours
XPR 3500e UHF: 27.5/21.0 hours
XPR 3300e VHF: 28.5/21.0 hours
XPR 3300e UHF: 27.5/21.0 hours
Channel spacing:
Physical Characteristics
Dimensions H x W x D (with standard battery)
4.8 x 2.2 x 1.4 in (122 x 56 x 36 mm)
Weight (with standard battery)
XPR 3500e: 10 oz (281 g)
XPR 3300e: 9 oz (264 g)
Keypad / Keys
XPR 3500e: Limited keypad
XPR 3300e: No keypad
Display
XPR 3500e: Monochrome display
XPR 3300e: No display
User Environment
Operating temperature
-30°C / +60°C
Mil spec
810 D, 810 E
IP Standards
IP54
Connected
The MOTOTRBO XPR 3000e Series is a family of DMR-standard digital radios that delivers operations-critical voice communications. Bluetooth® audio lets you talk without wires and integrated Wi-Fi® enables remote software updates, giving you complete control of your radio fleet. With support for basic trunking as well as legacy analog technology, you can keep your organization connected as it grows.
Safe
The XPR 3000e Series is designed to enhanced safety in your organization, with the rapid response capability of instant push-to-talk communications. Even if a worker is unresponsive, you can remotely activate the radio to check status ensuring your worker is safe. Privacy options are available to protect your communications, and radios can be remotely disabled if they are misplaced. New HazLoc models are available for use in areas where flammable or explosive materials are present.
Efficient
With new noise cancellation technology and improved clarity, the XPR 3000e Series delivers excellent audio quality to make your workplace communications clearly intelligible. The latest energy technology delivers up to 28.5 hours of battery life for 3-shift working, and the optional IMPRES Over-the-Air Battery Management tool helps you maximize battery lifetime. An improved receiver boosts range by up to 8%, allowing you to reach further than ever.
Next-Generation XPR 3000e Series Radios:
More Connected
- Integrated Wi-Fi, Ideal for Downloading New Software Remotely
- Integrated Bluetooth 4.0 (Check availability)
- Improved Expandability
More Efficient
- High-Efficiency Low Voltage Battery for Up to 28.5 Hours Battery Life
- Louder, Virtually Distortion-Free Audio for Super-Clear Communication
More Effective
- IP67 Rating for Better Resistance to Water and Dust
- Better Range (Up to 8%)
- Innovative New Accessories
- Hazloc Models Available
Brochures
Data Sheets
Videos
Communications are Evolving: Next-Generation MOTOTRBO Two-way Radios
From the production line to the power line, MOTOTRBO radios are helping people work more efficiently, productively and safely. MOTOTRBO delivers game-changing advantages along with business-essential systems, applications and accessories.
 | PMAE4079 UHF/GPS Combination Wideband Slim Whip Antenna (403-527 MHz) |
 | PMAD4117 VHF/GPS Combination Helical Antenna (136-155 MHz) |
 | PMAD4116 VHF/GPS Combination Helical Antenna (144-165 MHz) |
 | PMAD4118 VHF/GPS Combination Helical Antenna (152-174 MHz) |
 | PMAE4069 UHF/GPS Combination Stubby Antenna (403-450 MHz) |
 | PMAE4070 UHF/GPS Combination Stubby Antenna (440-490 MHz) |
 | PMAE4071 UHF/GPS Combination Stubby Antenna (470-527 MHz) |
 | PMAD4119 VHF/GPS Combination Stubby Antenna (136-148 MHz) |
 | PMAD4120 VHF/GPS Combination Stubby Antenna (146-160 MHz) |
 | PMAD4121 VHF Stubby Antenna (160-174 MHz) |
 | PMAD4137 VHF Stubby Antenna (300-337 MHz) |
| PMAD4135 VHF Stubby Antenna (320-360 MHz) |
| PMAD4136 VHF Stubby Antenna (350-380 MHz) |
| PMAD4133 VHF Stubby Antenna (360-400 MHz) |
| PMAD4138 VHF Whip Antenna (300-360 MHz) |
| PMAD4139 VHF Whip Antenna (350-400 MHz) |
Motorola Original® Two-Way Radio Batteries
 | PMNN4406 Slim Li-Ion 1500 mAh battery Submersible (IP57) |
 | PMNN4407 IMPRES Slim Li-Ion 1500 mAh battery Submersible (IP57) |
 | PMNN4409 IMPRES Li-Ion 2150 mAh battery Submersible (IP57) |
 | PMNN4435 Long life (LiMn) 1300 mAh battery Submersible (IP57), -30ºC rated |
 | PMNN4448 IMPRES Hi-Cap Li-Ion 2700 mAh battery Submersible (IP57) |
 | PMLN5869 Nylon Case with 3-inch Fixed Belt Loop (limited keypad model) |
 | PMLN5867 Hard Leather Carry Case with 2.5-inch Swivel Belt Loop (limited keypad model) |
 | PMLN5865 Hard Leather Carry Case with 3-inch Swivel Belt Loop (limited keypad model) |
 | PMLN5863 Hard Leather Carry Case with 3-inch Fixed Belt Loop (limited keypad model) |
 | PMLN5870 Nylon Case with 3-inch Fixed Belt Loop (non-display model) |
 | PMLN5868 Hard Leather Carry Case with 2.5-inch Swivel Belt Loop (non-display model) |
 | PMLN5866 Hard Leather Carry Case with 3-inch Swivel Belt Loop (non-display model) |
 | PMLN5864 Hard Leather Carry Case with 3-inch Fixed Belt Loop (non-display model) |
 | PMLN4651 Spring Action 2-inch Belt Clip |
 | PMLN7008 Spring Action 2.5-inch Belt Clip |
 | PMLN5610 Replacement 2.5-inch Swivel Belt Loop |
 | PMLN5611 Replacement 3-inch Leather Swivel Belt Loop |
 | HLN9985 Waterproof Bag with large strap for securely carrying Motorola two-way radios |
 | 4200865599 1.75-inch Wide Leather Belt |
 | HLN6602 Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch |
 | RLN4570 Break-a-Way Chest Pack with Radio Holder Pen Holder and Velcro-Secured Pouch |
| 1505596Z02 Replacement Strap for HLN6602 and RLN4570 |
 | RLN4815 Radio Pack Radio Utility Case |
 | 4280384F89 Radio Pack Extension Belt for waists larger than 40 inches |
 | NTN5243 Adjustable Nylon Carrying Strap |
 | RLN6486 Leather Radio Strap |
 | RLN6487 Leather Radio Strap - XL |
 | RLN6488 Anti-Sway Strap for Leather Radio Straps |
 | PMLN6066 Accessory Connector Dust Cover |
Desktop, Single & Multi-unit Chargers
 | NNTN8275 Single-Unit Rapid Rate Charger, 120V (US Plug) |
 | WPLN4232 IMPRES Single-Unit Rapid Rate Charger, 120V (US Plug) |
 | WPLN4212 IMPRES Multi-Unit Rapid Rate Charger with 1 Display, 120V (US plug) |
 | WPLN4219 IMPRES Multi-Unit Rapid Rate Charger with 6 Displays, 120V (US plug) |
 | RLN5382 Display Module for IMPRES Multi-Unit Charger |
 | NLN7967 Wall Mount Bracket for IMPRES Multi-Unit Charger |
Vehicular and Travel Chargers
 | NNTN7616 IMPRES Single-Unit Rapid Rate Vehicular Charger, heavy-duty permanent mount |
 | NNTN8525 Travel Charger, Rapid Rate with voltage-regulated adapter, custom charger base, mounting bracket and coil cord |
Surveillance Accessories and Earpieces
| PMLN5724 2-Wire Surveillance Kit with translucent tube, black |
| PMLN5726 2-Wire Surveillance Kit with translucent tube, beige |
 | PMLN7269 2-Wire Surveillance Kit with translucent tube, black. |
| PMLN7270 2-Wire Surveillance Kit with translucent tube, beige. |
 | PMLN6754 IMPRES 3-Wire Surveillance Kit with quick disconnect translucent tube, programmable button, black |
| PMLN6755 IMPRES 3-Wire Surveillance Kit with quick disconnect translucent tube, programmable button, beige |
 | PMLN6757 Adjustable D-style earpiece with in-line microphone and push-to-talk, black |
Mag One™ Accessories
 | PMLN5733 Mag One Earbud with in-line microphone and push-to-talk |
 | PMLN5727 Mag One Swivel Earpiece with in-line microphone and push-to-talk |
 | PMLN5732 Mag One Earset with boom microphone and in-line push-to-talk |
 | PMLN5731 Heavy-Duty Headset with Noise-Canceling boom mic and in-line push-to-talk, noise reduction = 24dB |
 | PMLN6760 Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB |
| PMLN6759 IMPRES Temple Transducer with boom microphone and in-line push-to-talk |
 | PMLN6635 Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic |
| PMLN6761 Mag One Ultra-Lite Behind-the-Head Headset, single muff with in-line push-to-talk and boom mic |
Remote Speaker Microphone (RSM)
 | PMMN4071 IMPRES Noise-Canceling Remote Speaker Microphone with 3.5mm audio jack, large (IP54), Noise Canceling (IP54) NOT INTENDED FOR FIRE MARKETS |
 | PMMN4073 IMPRES Windporting Remote Speaker Microphone with 3.5mm audio jack, small (IP55) |
 | PMMN4075 Windporting Remote Speaker Microphone, small, submersible (IP57) |
 | PMMN4076 Windporting Remote Speaker Microphone with 3.5mm audio jack, small (IP54) |
Remote Speaker Microphone With Standard 3.5mm Jack
 | AARLN4885 Receive-Only Covered Earbud with coiled cord |
 | RLN4941 Receive-Only Earpiece with translucent tube and rubber eartip |
 | WADN4190 Receive-Only Flexible Earpiece |
 | PMLN4620 Receive-Only D-Shell Earpiece |
The Motorola XPR 3000e Series is available in the following models.
Motorola XPR 3500e
- AAH02JDH9VA1AN 136-174 MHz 5 Watts, 128 Channels Monochrome display, limited keypad
- AAH02RDH9VA1AN 403-512 MHz 4 Watts, 128 Channels Monochrome display, limited keypad
Motorola XPR 3300e
- AAH02JDC9VA1AN 136-174 MHz, 5 Watts, 16 Channels, WI-Fi Capable No display or keypad
- AAH02RDC9VA1AN 403-512 MHz, 4 Watts, 16 Channels, WI-Fi Capable No display or keypad
