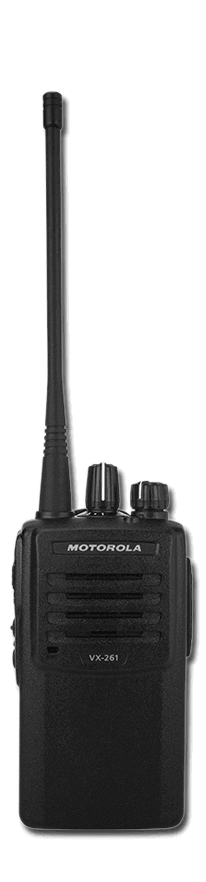

VX-261
Motorola has canceled the VX-261. If you are looking for a replacement radio we suggest the Motorola MOTOTRBO R2.
If you are looking for a trunking radio or need more assistance please feel free to contact us.
Performance Characteristics
Frequency Band:
VHF, UHF
Frequency Range:
VHF - 136 - 174 MHz;
UHF - 403 - 470 MHz, 450 - 512 MHz
Power Output:
1/5 Watt
Number of Channels/Groups/Zones:
16 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
FNB-V133LI-UNI: 10.8 h (8.8 h w/o Saver)/FNB-V134LI-UNI: 19 h (15.5 h w/o Saver)
Physical Characteristics
Dimensions H x W x D (with standard battery)
4.3 x 2.3 x 1.3 in (109.2 x 58.4 x 32.3 mm)
Weight (with standard battery)
9.9 oz (281 g) (w/FNB-V133LI-UNI, Antenna, Belt Clip)
11.6 oz (330 g) (w/FNB-V134LI-UNI, Antenna, Belt Clip)
Keypad / Keys
None
Display
None
User Environment
Operating temperature
-22º F to +140º F (-30º C to +60º C)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP55
Enhanced Audio Output
Excellent Audio performance allows for better message clarity so you can be heard loud and clear in all situations.
Expanded Interoperability
The VX-260 Series boasts abundant signaling options such as MDC1200®, FleetSync®, DTMF, 2-tone and 5-tone capabilities, providing seamless integration into a mixed fleet.
Safety Not Sacrificed
Emergency alert can be programmed to instantly notify help with a press of a button. Lone Worker is a built-in timer that requires the user to reset at a predetermined interval. If not reset, the radio automatically switches to Emergency mode to alert help. An ideal solution for supervisors to monitor the safety status of radio users working alone. VOX capable with accessory.
Universal Battery System – One Size Fits All
The Universal Battery System for Motorola portable radios takes energy interoperability to a new level by utilizing a single charger base to support multiple radio series when used with designated UNI batteries. Eliminate equipment clutter and confusion by consolidating down to one battery and charging platform and increase your productivity.
Motorola VX-261 Features
- 16 channels
- 2 Programmable Keys
- 700 mW Internal Speaker
- MDC1200® ANI Encode
- FleetSync® ANI Encode
- DTMF ANI Encode
- 2-Tone Encode/Decode
- 5-Tone Encode/Decode
- CTCSS / DCS Encode and Decode
- Emergency
- Lone Worker
- Multiple Scan Options
- ARTS™
- Internal VOX (when used with VOX accessory)
- 3 Year Warranty
UHF Antennas
 |
AAE23X501 ATU-6A: 400-430 MHz UHF Antenna 6.5” |
|
AAE23X506 ATU-6B: 420-450 MHz UHF Antenna 6.1” |
|
AAE23X502 ATU-6C: 440-470 MHz UHF Antenna 6.1” |
|
AAE23X503 ATU-6D: 450-485 MHz UHF Antenna 6” |
|
AAE20X503 ATU-6DS: 450-485 MHz UHF Antenna 3.5” |
|
AAE23X504 ATU-6F: 485-520 MHz UHF Antenna 5.35” |
VHF Antennas
|
AAE24X501 ATV-8A: 134-151 MHz VHF Antenna 6” |
|
AAE24X502 ATV-8B: 150-163 MHz VHF Antenna 6” |
|
AAE24X503 ATV-8C: 161-174 MHz VHF Antenna 6” |
|
AAG42X501 ATV-6XL: Untuned VHF Antenna 7” |
|
AAJ67X501 FNB-V133LI-UNI: 1380 mAh Li-ion |
|
AAJ68X501 FNB-V134LI-UNI: 2300 mAh Li-ion |
|
AAM03X511 LCC-261: Leather Case, Belt Loop (FNB-V133LI) |
|
AAM03X512 LCC-261H: Leather Case, Belt Loop (FNB-V134LI) |
|
AAM03X513 LCC-261S: Leather Case, Swivel Belt Loop (FNB-V133LI) |
|
AAM03X514 LCC-261SH: Leather Case, Swivel Belt Loop (FNB-V134LI) |
|
AAH12X501 CLIP-20: Belt Clip |
|
CD-58: Charger Base |
|
PA-55: AC Adapter |
|
XUAAK44X501 VAC-6058: MUC Charger (Multiple Plugs for Both Regions) |
|
AAK45X501 VCM-5: Vehicular Charger Mounting Adaptor |
|
AAK50X501 MH-37A4B-1: Earpiece Microphone |
|
AAL82X501 MH-100: Rx Only Earpiece, 3.5mm |
|
AAL83X501 MH-101A4B: Single Wire Surveillance Kit |
|
AAL84X501 MH-102A4B: 2-Wire Surveillance Kit |
|
AAL85X501 MH-103A4B: 3-Wire Surveillance Kit |
|
AAL40X501 VH-150A: VOX Capable Lightweight Headset, Behind-the-Head |
|
AAL41X501 VH-150B: VOX Capable Lightweight Headset, Over-the-Head |
|
AAM02X501 MH-201A4B: Heavy-Duty Headset |
 |
AAF52X501 MH-360S: Compact Speaker Microphone with 3.5mm Audio Jack |
 |
AAF53X501 MH-450S: Speaker Microphone with 3.5mm Audio Jack |
|
A13960507 MH-45B4B: Noise Cancelling Speaker Microphone |
 |
AAE46X507 MH-66A4B: Noise Cancelling Speaker Microphone with 3.5mm Audio Jack |
The Motorola VX-261 is available in the following VHF and UHF models.
VHF
AC128N501-MOT-NA
VX-261 Series Portable Radio 134-174 MHz, 16 Channels, 1-5 Watt
UHF
AC128U502-MOT-NA
VX-261 Series Portable Radio 403-470 MHz, 16 Channels, 1-5 Watt
AC128U501-MOT-NA
VX-261 Series Portable Radio 450-512 MHz, 16 Channels, 1-5 Watt
