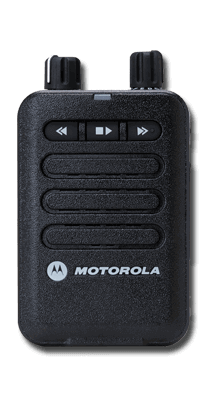

MINITOR VI
The Motorola MINITOR VI™ Two-Tone Voice Pager is ideal for fire departments and other organizations that need to react quickly in times of emergency. With up to 16 minutes of voice recording, customizable call alerts and improved receiver design, the MINITOR VI Two-Tone Voice Pager is flexible, rugged and reliable. It's built for the realities of first responders.
Performance Characteristics
Frequency Band:
VHF, UHF
Frequency Range:
VHF: 143-174 MHz; UHF: 406-430 MHz, 450-486 MHz, 476-512 MHz
Standard battery chemistry type:
Li-ion
Battery life:
10 Days (80 hours)
Channel spacing:
25kHz / 12.5kHz
Physical Characteristics
Dimensions H x W x D (with standard battery)
4.1 x 2.4 x 1.0 inches
Weight (with standard battery)
6.02 oz
Keypad / Keys
User Environment
Operating temperature
-30C/+60C
IP Standards
IP56
Single or 5-Channel Models
Wide-and narrow-band programmable channel spacing
Wideband Receiver Design
One pager covers the entire VHF band; three pagers cover the entire UHF band.
Expanded Stored Voice
Stores up to 16 minutes of voice messages
Message Management
Next/previous, fast forward/rewind, delete, lock/unlock
Programmable Addresses
Supports 10 two-tone pairs and 5 individual long-tone alerts.
Silent Scan (5-Channel Model)
Scans two channels silently, alerts on either channel
Priority Scan (5-Channel Model)
Plays all traffic on both channels, alerts on the priority channel
Probability Scan (5-Channel Model)
Plays all traffic on both channels, alerts on either channel
Customizable Alert Tones
Select from pre-programmed alert tones, or import your own .wav files. Select vibrate profiles per address.
Customizable Function Mode Announcement
Announces programmed operating mode. Select from pre-programmed announcements, or import your own .wav files.
Battery Level Announcement
In addition to LED indication, pager can also announce battery level (high, medium, low, critically low).
Flexible Battery Options
Use included rechargeable battery or optional alkaline battery tray (non-intrinsically safe models only) for emergency in-field battery replacement.
Rugged and Reliable Design
IP56 rating for dust and water intrusion. Stands up to Motorola Accelerated Life Testing that simulates years of field use.
Available in an intrinsically safe version for use in areas with flammable gases and vapors, or a non-intrinsically safe version for improved field serviceability and battery options.
Intrinsically Safe (Optional)
UL certified intrinsically safe for hazardous locations: Division 1, Class I, Group C, D, Class II, Group E,F,G, Class III, T3C.
Spec Sheets
Antennas
 | RLN6507 VHF Antenna for Use With Minitor VI Amplified Charger |
 | RLN6508 Minitor VI Charger Antenna |
Carry Accessories
 | PMLN6725 Minitor VI Nylon Carry Case, Plain |
| RLN6509 Minitor VI Belt Clip |
Batteries
 | PMNN4438 Minitor VI Intrinsically Safe Li-ion Battery |
| PMNN4451 Minitor VI Standard Battery |
Chargers
| RLN6505 Minitor VI Standard Charger |
| 25009297001 Switch Mode Power Supply for Single-Unit Chargers |
