Motorola Solutions

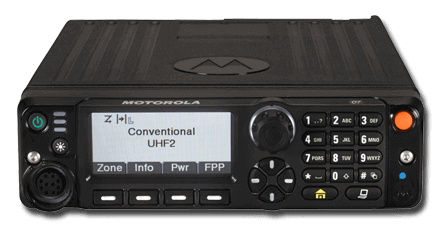

APX 8500

A high-speed chase. A massive traffic accident. A natural disaster. First responders must be ready to communicate at a moment's notice in any situation.

The APX 8500 all-band mobile radio combines unlimited interoperability, secure Wi-Fi connectivity and purpose-built design, enabling ease of installation and removal. It can easily connect to the VML750 LTE vehicle modem via the micro USB interface and utilize a broadband network to create an in-vehicle ecosystem for offloading data applications in the field, increasing the safety and efficiency of public safety users in and around the vehicle.

The APX 8500 High Power variant delivers up to 100W of transmitter power, for extraordinary reach and coverage. It's ideal for incident commanders who need to coordinate multiple teams across different frequency bands - especially in situations where network infrastructure is unavailable.

Performance Characteristics

Frequency Band:
700/800 MHz, VHF, UHF Range 1 & UHF Range 2

Frequency Range:
700/800 (764-776, 794-806, 806-824, 851-870 MHz)
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)

Power Output:
700 MHz: 10-30 W, 800 MHz: 10-35 W,
VHF: 1-50 W (Mid Power), 1-100 W (High Power)
UHF Range 1: 1-40 W (Mid Power), 1-100 W (High Power)
UHF Range 2: 1-45 W (450-485 MHz); 10-40 W (485-512 MHz); 1-25 W (512-520 MHz),

Number of Channels/Groups/Zones:
3,000 Channels

Channel spacing:
25/20/12.5 kHz

Physical Characteristics

Dimensions H x W x D
Mid Power Radio Transceiver and O5 Control Head - Dash Mount: 2.0" x 7.0" x 9.8" (51mm x 178mm x 250mm)
Mid Power Radio Transceiver and O2 Control Head - Dash Mount: 2.7" x 8.1" x 10.7" (68mm x 206mm x 271mm)
Mid Power Radio Transceiver and O7 Control Head - Dash Mount: 2.0" x 7.0" x 10.1" (51mm x 178mm x 256mm)
Mid Power Radio Transceiver and Remote Mount: 2.0" x 7.0" x 9.1" (51mm x 178mm x 232mm)
High Power Radio Transceiver and Remote Mount: 3.4" x 9.7" x 12.6" (88mm x 248mm x 320mm)

Weight
Mid Power Radio Transceiver and O5 Control Head: 6.8lbs (3.1kg)
Mid Power Radio Transceiver and O2 Control Head: 7.23lbs (3.3kg)
Mid Power Radio Transceiver and O7 Control Head: 6.8lbs (3.1kg)
High Power Radio Transceiver and Remote Mount: 17.6lbs (8.0kg)

User Environment

Operating temperature
-30ºC/+60ºC

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP56

Request A Quote

ALL-BAND OPERATION

4-in-1 Radio:
7/800 MHz, VHF and UHF Range 1 and Range 2 bands

Modes and Protocols include:
Analog MDC-1200 and QCII, Digital P25, Conventional or Trunked, Smartnet / SmartZone, clear or secure, repeater or direct.

INTEGRATED WI-FI AND DATA CONNECTIVITY

Update Your Radio Fleet Software
more efficiently without interrupting voice communications or waiting for idle radios.

Up to 20 Wi-Fi Networks
can be provisioned in the radio so that users can seamlessly receive radio software updates at facility Wi-Fi access points or in the field via Wi-Fi hot spots.

GPS Outdoor Personnel Tracking shares your personnel's location, resulting in more efficient task assignment and enhanced officer safety.

Mission-Critical Geofence
ensures fast communication and collaboration across multiple departments arriving on a scene by automatically placing first responders in the same talkgroup when they enter an agency-defined virtual barrier.

SECURITY

Multiple Hardware Encryption Algorithms
like AES, DES, ADP with up to 128 keys so sensitive information stays protected from scanners and eavesdroppers.

Over-the-air Re-key (OTAR)
to efficiently update encryption keys of fielded radios over time.

P25 Radio Authentication
ensures only valid users can access the system.

Two-factor Authentication
allows users to securely query databases.

FIT FOR THE MISSION

Intelligent Lighting
uses three simple colors to alert users of critical radio events like emergency, low battery, out of range and private calls and pages.

Voice Announcement
provides audible confirmation of zone/channel selections and various feature like scan, direct mode, emergency, encryption and controls lock.

Ease of Installation:
Simplified dash mount design is quick and easy to install

RFID Asset Tracking
Twelve-character RFID asset tracking provides a convenient method of obtaining valuable asset tracking information without having to uninstall the radio.

RUGGEDNESS

IP56 Water-intrusion Rating
gives you the confidence that your mobile will continue to perform even if exposed to water.

MIL-STD 810 C, D, E, F, G
rating ensures you can rely on your radio in the most extreme environments.

VHF Antennas (RF Only)

Motorola HAD4006

HAD4006

VHF 1/4 Wave Antenna, 136-144 MHz

Motorola HAD4007

HAD4007

VHF 1/4 Wave Antenna, 144-150.8 MHz

Motorola HAD4008

HAD4008

VHF 1/4 Wave Antenna, 150.8-162 MHz

Motorola HAD4009

HAD4009

VHF 1/4 Wave Antenna, 162-174 MHz

Motorola HAD4016

HAD4016

VHF 1/4 Wave Antenna, 136-162 MHz

Motorola HAD4017

HAD4017

VHF 1/4 Wave Antenna, 146-174 MHz

Motorola HAD4021

HAD4021

VHF Wideband Antenna, 136-174 MHz

Motorola HAD4022

HAD4022

VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz

Motorola RAD4010ARB

RAD4010ARB

VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz

Motorola RAD4002ARB

RAD4002ARB

VHF 1/4 Wave Antenna, 136-144 MHz

Motorola RAD4003ARB

RAD4003ARB

VHF 1/4 Wave Antenna, 144-150.8 MHz

Motorola RAD4004ARB

RAD4004ARB

VHF 1/4 Wave Antenna, 150.8-162 MHz

Motorola RAD4005ARB

RAD4005ARB

VHF 1/4 Wave Antenna, 162-174 MHz

UHF Antennas (RF Only)

Motorola HAE6012

HAE6012

UHF 1/4 Wave Antenna, 380-433 MHz

Motorola HAE4003

HAE4003

UHF 1/4 Wave Antenna, 450-470 MHz

Motorola HAE4004

HAE4004

UHF 1/4 Wave Antenna, 450-470 MHz

Motorola HAE4012

HAE4012

UHF 3 dB Gain Antenna, 450-495 MHz

Motorola HAE4013

HAE4013

UHF 3 dB Gain Antenna, 494-512 MHz

Motorola HAE6010

HAE6010

UHF 3.5 dB Gain Antenna, 380-433 MHz

Image Not Available

HAE4011

UHF 3.5 dB Gain Antenna, 450-470 MHz

Motorola HAE6011

HAE6011

UHF 5 dB Gain Antenna, 380-433 MHz

Image Not Available

RAE4014ARB

UHF 5 dB Gain Antenna, 455-470 MHz

Motorola RAE4016ARB

RAE4016ARB

UHF 5 dB Gain Antenna, 494-512 MHz

Motorola HAE6013

HAE6013

UHF 2 dB Gain Wideband Antenna, 380-470 MHz

Motorola HAE6015

HAE6015

UHF 2 dB Gain Wideband Antenna, 450-512 MHz

Motorola HAE6031

HAE6031

UHF 2 dB Gain Wideband Antenna, 380-520 MHz

Motorola HAE6016

HAE6016

UHF Wideband Low Profile Antenna, 450-512 MHz

Motorola HAE6014

HAE6014

UHF 1/4 Wave Antenna, 380-433 MHz

Motorola HAE6032

HAE6032

UHF 1/4 Wave Antenna, 425-470 MHz

Image Not Available

HAE6033

UHF 1/4 Wave Antenna, 450-482 MHz

Image Not Available

HAE6034

UHF 1/4 Wave Antenna, 482-512 MHz

Motorola HAE6035

HAE6035

UHF 1/4 Wave Low Profile Antenna, 450-512 MHz

700/800 MHz Antennas (RF Only)

Motorola HAF4016

HAF4016

1/4 Wave Antenna, 762-870 MHz

Motorola HAF4013

HAF4013

3 dB Gain Low Profile Antenna, 762-870 MHz

Motorola HAF4014

HAF4014

3 dB Gain Elevated Feed Antenna, 762-870 MHz

Motorola HAF4017

HAF4017

3 dB Gain Collinear Antenna, 762-870 MHz

Motorola HAF4015

HAF4015

3 dB Gain Antenna, 762-870 MHz

Motorola HAF4018

HAF4018

Low Profile Antenna, 762-780 MHz

GPS Antennas

Motorola HAG4000

HAG4000

GPS Roof Mount Antenna SMA Male connector with RG-174 17ft cable

Motorola PMAN4001

PMAN4001

GPS Glass Mount Antenna SMA Male connector with RG-174 17ft cable

Motorola HAG4001

HAG4001

GPS Motorcycle Antenna

Motorola HLN6042

HLN6042

Desktop Tray with Speaker

Motorola HPN4007

HPN4007

Power Supply, 25-60W, for low power radios (cord included)

Motorola 3060665A04

3060665A04

110V Line Cord, Replacement Cable for HPN4007

Motorola HLN7003

HLN7003

High Power Trunnion Kit; Quick Release with Lock

Motorola HLN7002

HLN7002

Mid Power Trunnion Kit; Standard Installation Bracket

Motorola HLN6372

HLN6372

Mid Power Trunnion Lock

Motorola HKN6186

HKN6186

Remote Mount Control Head Trunnion Compatible with 02/05 and 07 control heads.

Motorola HLN7031

HLN7031

Low Profile Remote Mount Control Head Trunnion Kit

Motorola HLN7022

HLN7022

Motorcycle Enclosure, Black

Cables

Control Head Cables

Motorola PMLN4958

PMLN4958

O3 Handheld Control Head Extension Cable, 17-Feet

Motorola PMLN4959

PMLN4959

O3 Handheld Control Head Accessory Cable

Motorola HKN6187

HKN6187

Control Head Cable with Connections for Power, Speaker and Headset Jack

Motorola HKN6188

HKN6188

Control Head Cable with Connections for Power and Speaker

Remote Mount Cables

Motorola HKN6164

HKN6164

Remote Mount Cable, 131-Feet

Motorola HKN6165

HKN6165

Remote Mount Cable, 115-Feet

Motorola HKN6166

HKN6166

Remote Mount Cable, 75-Feet

Motorola HKN6167

HKN6167

Remote Mount Cable, 50-Feet

Motorola HKN6168

HKN6168

Remote Mount Cable, 30-Feet

Motorola HKN6169

HKN6169

Remote Mount Cable, 17-Feet

Motorola HKN6170

HKN6170

Remote Mount Cable, 10-Feet

Motorola HKN6196

HKN6196

Cable, Remote Control Head Vehicular Interface Port Connector for O5 Control Head

Image Not Available

HKN6961

Cable, Remote Control Head Mobile Accessory Port Connector for O5 Control Head

Image Not Available

3075217A02

Motorcycle Remote Cable for O5 Control Head

Power Cables

Motorola HKN4191

HKN4191

Mid Power, Dash Mount Power Cable, 10-Feet

Motorola HKN4192

HKN4192

Mid Power, Remote Mount Power Cable, 20-Feet

Motorola HLN6863

HLN6863

Mid Power, Rear Ignition Cable, Dash Mount

Motorola HKN6110

HKN6110

High Power, Remote Mount Power Cable 20-Feet

Motorola HKN6032

HKN6032

Motorcycle Power Cable

Data Cables

Motorola HKN6160

HKN6160

RS232 Cable for Rear Accessory Port, Dash Mount Only, 6-Feet

Image Not Available

HKN6161

RS232 Cable for Rear Accessory Port, Remote Mount Only, 20-Feet

Motorola HKN6183

HKN6183

RS232 Cable for Mobile Microphone Port

Motorola HKN6122

HKN6122

RS232 Cable for J600 Transceiver Interconnect Board, 22-Feet

Keyload Cables

Image Not Available

TKN8531

Keyloader Cable, KVL3000 and KVL4000

Motorola HKN6182

HKN6182

Keyload Adapter for Mobile Microphone Port

External Alarm Accessories

Motorola HLN6953

HLN6953

External Alarm Buzzer

Motorola HLN6969

HLN6969

External Alarm Relays

Motorola HMN4079

HMN4079

Keypad Microphone

Motorola HMN1090

HMN1090

Standard Palm Microphone

Motorola HMN1089

HMN1089

Water Resistant Palm Microphone

Motorola HMN1079

HMN1079

Water Resistant Palm Microphone for Motorcycle Mounted Mobiles

Motorola HMN4097

HMN4097

Telephone Keypad Handset with Hang-Up Cup

Motorola HMN4097

HKN1018

Hang-Up Handset with Armored Cable

Motorola HKN1018

HLN1457

Handset with Hang-Up Cup

Motorola RMN5070

RMN5070

Desktop Microphone

Motorola RMN5054

RMN5054

IMPRES Visor Microphone, requires PTT Switch GLN7278 or RLN5926

Mobile Microphone Accessories

Motorola HLN5391

HLN5391

Microphone Hang-Up Clip

Motorola PMKN4093

PMKN4093

Microphone Extension Cable, 2-Feet.

Not compatible with HMN4097 handset or HMN4079 Keypad

Motorola PMKN4033

PMKN4033

Microphone Extension Cable, 10-Feet.

Not compatible with HMN4097 handset or HMN4079 Keypad

Motorola PMKN4034

PMKN4034

Microphone Extension Cable, 20-Feet.

Not compatible with HMN4097 handset or HMN4079 Keypad

Motorola HLN5131

HLN5131

Emergency Push Button, can be used with the Visor Microphone

Motorola HLN5113

HLN5113

Emergency Footswitch, can be used with the Visor Microphone

Motorola GLN7278

GLN7278

Footswitch Push-To-Talk, can be used with the Visor Microphone

Motorola RLN5926

RLN5926

Push Button Push-To-Talk, can be used with the Visor Microphone

Siren Accessories

Motorola H1338

H1338

Status/Message Direct Entry Keypad, 8 Buttons

Motorola HLN1439

HLN1439

Mobile Siren

Motorola HLN6819

HLN6819

Siren Switchbox

Motorola H1615

H1615

Mode Direct Entry Keypad, 8-Buttons

Image Not Available

HKN6146

Siren Cable, O3 Siren to Switchbox

Image Not Available

HKN6145

Siren Cable, Direct Keypad for O3 Control Head

Motorola HKN6189

HKN6189

Direct Entry Keypad Cable, DEK to O5 Control Head, rear connector

Image Not Available

HKN4363

Siren Cable, O5 Siren to Switchbox

Universal Relay Controller

Image Not Available

PMUN1046

Universal Relay Controller for O9 Control Head, 10 DC Outputs, 15 Amps per Channel

Image Not Available

3064153H05

Universal Relay Controller to Transceiver Cable

Motorola RLN6551

RLN6551

Long Range Wireless Mobile Accessory Kit, includes Wireless Remote Speaker Microphone (RLN6544), Mobile Microphone Bluetooth Gateway (PMMN4097C), Vehicular Charger (PMMN6716)

Image Not Available

RLN6552

Long Range Wireless Mobile Accessory Kit (No Power Charger), includes Wireless Remote Speaker Microphone (RLN6544), Mobile Microphone Bluetooth Gateway (PMMN4097C), Charger must be purchased separately
