Motorola Solutions apx-n70

Motorola Solutions

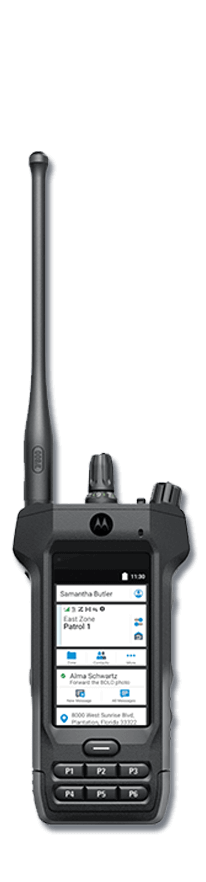

APX N70

FOCUSED. FORWARD.

Safety and focus on the front line are paramount. Reliable and intuitive communications devices that are rugged and easy to use, are non negotiable for first responders. Clear communications have proven to be lifesaving in critical moments.

Reliable P25 radios must evolve to offer sophisticated features that work within a larger public safety ecosystem. They must deliver actionable intelligence to provide increased situational awareness during an incident.

We designed our APX N70 explicitly for this purpose. It provides public safety personnel the mission-critical communications and real-time information they need to stay connected and respond safely.

Inherently rugged, it offers an intuitive interface to ensure reliable eyes-up operation. Wherever they’re working, responders will hear and be heard with the loudest and clearest audio possible.

The APX N70 works reliably across a variety of frequencies, modes and protocols. Communications are secure with hardware encryption algorithms and can be updated quickly with batch radio programming and management tools. Optional next generation features such as LTE and smart apps enhance in-field intelligence for improved situational awareness so first responders can respond with focus and efficiency.

Performance Characteristics

Frequency Band:
700/800 Mhz

Frequency Range:
762-776, 792-806 MHz; 806-825, 851-870 MHz

Power Output:
1-3 Watt

Number of Channels/Zones:
3000 Channels / 200 Zones

Channel spacing:
12.5 / 20 / 25 kHz

Physical Characteristics

Dimensions H x W x D (with standard battery)
5.4 x 2.4 x 1.7 inches

Weight (with standard battery)
17.4 oz

Display
Front: 3.0” Mission-critical Touchscreen: 360x600 TFT 24-bit Full Color Transflective Display
Top:1.2” Top Display: 200x112 TFT 18-bit Color Transflective Screen, 1 Line of Icons, 2 Lines of Text, 14 Characters per Line, 2 mm Toughened Glass Lens

User Environment

Operating temperature
(-22 to +140 ºF)

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP6x Dust
IPx8 submersion (2 m, 2 hr)

Request A Quote

READY FOR THE MISSION.

MADE FOR THE ENVIRONMENT.

Design is more than just being tough. It's also about being simple to use in the most challenging situations that require you to stay focused and ready.

APX N70 is a mission-critical radio, designed and built with legendary APX ruggedness for extreme conditions. It’s tested to military standards, rated IP68, supports immersion in 2 meters of water for up to 4 hours, and includes multiple sensors for improved collaboration and tracking. It’s the radio public safety responders can rely on as their lifeline on the front line today and tomorrow.

APX N70 is rugged and ready for everyday abuse. But should it fail, we will make it right. Rely on us to help get your radios fixed and back in the field where they belong. Our Hardware Repair and Accidental Damage Protection services deliver predictable costs, to give you peace of mind.

Brochures

Catalogs

Spec Sheets

SmartConnect

SmartLocate

SmartMapping

SmartMessaging

SmartProgramming

SmartTouch

ViQi Virtual Assistant

Videos

APX N P25 Radios - Ensuring a Secure Radio Solution Inside and Out


Introducing APX N P25 Line of Radios


APX N P25 Radios - Combining classic ergonomics with new interfaces


Motorola AN000411A01

AN000411A01

700/800 MHz Short Whip Antenna

Motorola 32012144001

32012144001

Gray Antenna ID Band (pack of 10)

Motorola 32012144002

32012144002

Yellow Antenna ID Band (pack of 10)

Motorola 32012144003

32012144003

Green Antenna ID Band (pack of 10)

Motorola 32012144004

32012144004

Blue Antenna ID Band (pack of 10)

Motorola 32012144005

32012144005

Purple Antenna ID Band (pack of 10)

Motorola IMPRES Two-way Batteries

Motorola PMNN4816

PMNN4816

IMPRES 2 Li-Ion 3200 mAh Battery, IP68 Rugged*

Motorola PMNN4817

PMNN4817

IMPRES 2 Li-Ion 4400 mAh Battery, IP68 Rugged*

Motorola PMNN4818

PMNN4818

IMPRES 2 Li-Ion 3650 mAh Battery, IP68 Rugged

Motorola PMLN8371

PMLN8371

APX N70 Classic Holster

Motorola PMLN8372

PMLN8372

APX N70 Hybrid Leather Carry Case with Standard Battery

Motorola PMLN8373

PMLN8373

APX N70 Hybrid Leather Carry Case with High Capacity Battery

Motorola PMLN8374

PMLN8374

APX N70 Hybrid Leather Carry Case with TIA4950 Battery

Motorola PMLN8507

PMLN8507

APX N70 2.5" Belt Clip

Motorola PMLN8508

PMLN8508

APX N70 3" Belt Clip

Desktop, Single & Multi-unit Chargers

Motorola PMPN4604

PMPN4604

IMPRES 2 Single-Unit Fast Charger, US/NA 115V

Motorola PMPN4591

PMPN4591

IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, US/NA 100-240V

Motorola AS000178A01

AS000178A01

Pocket to use with IMPRES 2 Multi-Unit Fast Charger

Motorola NLN7967

NLN7967

Wall Mount Bracket for IMPRES 2 Multi-Unit Chargers

Motorola PS000040A02

PS000040A02

Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V

Travel Chargers

Motorola PMPN4639

PMPN4639

APX Next Vehicle Charger

Surveillance Kits & Earpieces

Motorola PMLN8341

PMLN8341

IMPRES™ 1-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black

Motorola PMLN8342

PMLN8342

IMPRES™ 2-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black

Motorola PMLN8343

PMLN8343

IMPRES™ 3-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black

Motorola PMLN8295

PMLN8295

IMPRES™ 2-Wire Swivel Earhook with Removable Eartip, Loud Audio, Black

Motorola PMLN8337

PMLN8337

IMPRES™ 1-Wire Single Earbud with Removable Earhook, Loud Audio, Black

Motorola PMLN8092

PMLN8092

Replacement Quick Disconnect Translucent Tube with Clear Rubber Eartip

Motorola PMLN6127

PMLN8068

Replacement Rubber Eartip, Small (5 per pack)

Motorola PMLN8069

PMLN8069

Replacement Rubber Eartip, Medium (5 per pack)

Motorola PMLN6127

PMLN8070

Replacement Rubber Eartip, Large (5 per pack)

Motorola PMLN8363

PMLN8363

Replacement Rubber Sleeve, Small (25 per pack)

Motorola PMLN6127

PMLN8364

Replacement Rubber Sleeve, Medium (25 per pack)

Motorola PMLN8365

PMLN8365

Replacement Rubber Sleeve, Large (25 per pack)

Headsets

Motorola PMLN8085

PMLN8085

Heavy Duty Behind-the-Head Headset with Noise-Canceling Boom Microphone

Motorola PMLN8086

PMLN8086

Heavy Duty Over-the-Head Headset with Noise-Canceling Boom Microphone

3M PELTOR HEADSETS

PTT Adapter Configurations

Motorola PMLN8265

PMLN8265

CH-3 Series Over-the-Head Headset with Nexus Connector

Motorola PMLN8266

PMLN8266

CH-3 Series Neckband Headset with Nexus Connector

Motorola PMLN8267

PMLN8267

CH-3 Series Hard Hat Attached with Nexus Connector (Hat not included)

Motorola PMLN8297

PMLN8297

PTT Nexus Adapter

Remote Speaker Microphone (RSM)

Motorola PMMN4141

PMMN4141

XVP750 RSM with Channel Knob

Motorola PMMN4142

PMMN4142

XVP730 RSM without Channel Knob

Motorola PMMN4128

PMMN4128

RM780 RSM
