Motorola Solutions
CM Series
The MOTOTRBO CM Series mobile radio is a reliable, cost-efficient solution to keep your team in contact so they can communicate, coordinate and collaborate for maximum efficiency and safety. The CM Series is designed for the everyday driver, so your workers can connect without distraction, whether they're delivering cargo, dispatching trucks, or driving a school bus. The CM Series is easy to use and delivers clear communication for maximum efficiency of your operation.
The CM Series radios include:
CM200d

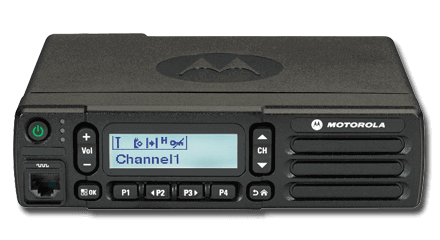

CM300d
Performance Characteristics
Frequency Band:
VHF, UHF
Frequency Range:
VHF 136-174 MHz UHF 403-470 MHz
Power Output:
1-25W, 25-45W (VHF); 1-25W, 25-40W (UHF)
Number of Channels/Groups/Zones:
16 / 99 Channels
Channel spacing:
12.5, 25
Physical Characteristics
Dimensions H x W x D
1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)
Weight
2.9 lbs (1.3 kg)
Display
CM200d: Numeric Display
CM300d: Alphanumeric Display
User Environment
Operating temperature
-30°C / +60°C
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP54
- Analog/Digital:
Get all the benefits of digital, including better voice quality, better range and better battery life, but retain compatibility with your existing radio fleet. With analog and digital capabilities, you have the freedom to migrate to the latest technology at your own pace. - Analog only:
Purchase analog capability now and transition to digital capability when you're ready. All you will need is a simple software upgrade. - Transmit Interrupt Capability (decode only):
Enables a supervisor to interrupt a CM Series user to deliver critical communication exactly when and where it's needed. - Compatible with Radio Management Suite:
Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance. - Dual Capacity Direct Mode:
Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel, without the need for a repeater. - IP54 Rated:
Dustproof and splashproof, so you can work with confidence in challenging environments.
Brochures
Spec Sheets
VHF Antennas
 | HAD4006 VHF 1/4 Wave Antenna, 136-144 MHz |
 | HAD4007 VHF 1/4 Wave Antenna, 144-150.8 MHz |
 | HAD4008 VHF 1/4 Wave Antenna, 150.8-162 MHz |
 | HAD4009 VHF 1/4 Wave Antenna, 162-174 MHz |
 | HAD4022 VHF Wideband Antenna 3.0 dB Gain, 136-174 MHz |
UHF Antennas
 | HAE4002 UHF 403-430 MHz, 1/4 Wave Roof Mount, Mini-U |
 | HAE4003 UHF 1/4 Wave Antenna, 450-470 MHz |
 | HAE4010 UHF 406-420 MHz, 3.5 dB Gain, Roof Mount, Mini-U |
 | HAE4011 UHF 450-470 MHz, 3.5 dB Gain, Roof Mount, Mini-U |
| HAE6022 UHF, 403-527 MHz, 2 dB Gain, Through-hole Mount, Mini-U |
| RAE4004ARB UHF 445-470 MHz, 5 dB Gain, Roof Mount, Mini-U (with base) |
| RLN6466 Low Profile Trunnion Kit |
| RLN6467 High Profile Trunnion Kit |
| RLN6468 Key Lock Trunnion Kit |
| FTN6083 In-Dash Mounting Kit - DIN |
| HKN4137 Power Cable to Battery - 10 foot, 15 amp 14 AWG |
 | HKN4191 Power Cable to Battery - 10 foot, 20 amp 12 AWG |
 | HKN4192 Power Cable to Battery - 20 foot, 20 amp 10 AWG |
 | HKN9327 Ignition Sense Cable |
| 3012045001 Trunnion Mounting Screws |
Cables & Connectors
| PMKN4147 Mobile Front Programming Cable |
| PMKN4151 Mobile Rear Accessory Connector Universal Cable |
| GMBN1021 Rear Accessory Connector Seal with Connector and Pins |
| HLN9457 16 Pin Accessory Connector Kit |
| PMLN5620 Connector Extender, 20 pieces |
 | PMMN4090 Standard Compact Microphone |
 | PMMN4091 Heavy-Duty Microphone |
 | PMMN4089 Keypad Microphone |
| PMLN6481 Telephone Style Handset |
 | GMMN4065 Visor Microphone |
| PMMN4098 Desktop Microphone |
Mobile Microphones Accessories
 | HLN9073 Microphone Hang-Up Clip (requires installation) |
 | HLN9414 Universal Microphone Hang-Up Clip (no installation require) |
Vehicle Remote PTT Solutions
 | RLN4836 Emergency Footswitch can be used with a visor microphone GMMN4065 |
 | RLN4856 Remote Mount Footswitch Push-to-Talk to interface with your visor microphone GMN4065 |
 | RLN4857 Remote Mount Pushbutton Push-to-Talk to interface with your visor microphone GMN4065 |
| HSN8145 7.5W External Speaker |
 | RSN4001 13W External Speaker |
 | GMKN4084 Speaker Extension Cable |
The Motorola CM Series is available in the following models.
Motorola CM300d
Analog Models
- AAM01JNH9JC1AN 136-174 MHz, 25 Watts, 99 Channels Alphanumeric Display
- AAM01JQH9JC1AN 136-174 MHz, 45 Watts, 99 Channels Alphanumeric Display
- AAM01QNH9JC1AN 403-470 MHz, 25 Watts, 99 Channels Alphanumeric Display
- AAM01QPH9JC1AN 403-470 MHz, 40 Watts, 99 Channels Alphanumeric Display
Digital Models
- AAM01JNH9JA1AN 136-174 MHz, 25 Watts, 99 Channels Alphanumeric Display
- AAM01JQH9JA1AN 136-174 MHz, 45 Watts, 99 Channels Alphanumeric Display
- AAM01QNH9JA1AN 403-470 MHz, 25 Watts, 99 Channels Alphanumeric Display
- AAM01QPH9JA1AN 403-470 MHz, 40 Watts, 99 Channels Alphanumeric Display
Motorola CM200d
Analog Models
- AAM01JNC9JC1AN 136-174 MHz, 25 Watts, 16 Channels Numeric Display
- AAM01JQC9JC1AN 136-174 MHz, 45 Watts, 16 Channels Numeric Display
- AAM01QNC9JC1AN 403-470 MHz, 25 Watts, 16 Channels Numeric Display
- AAM01QPC9JC1AN 403-470 MHz, 40 Watts, 16 Channels Numeric Display
Digital Models
- AAM01JNC9JA1AN 136-174 MHz, 25 Watts, 16 Channels Numeric Display
- AAM01JQC9JA1AN 136-174 MHz, 45 Watts, 16 Channels Numeric Display
- AAM01QNC9JA1AN 403-470 MHz, 25 Watts, 16 Channels Numeric Display
- AAM01QPC9JA1AN 403-470 MHz, 40 Watts, 16 Channels Numeric Display
