Motorola Solutions

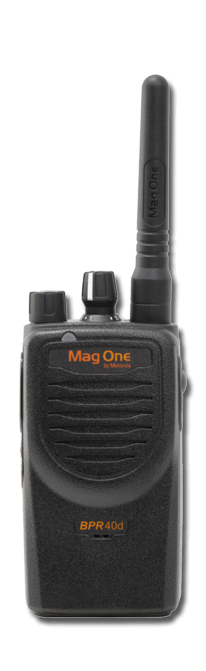

BPR40D
Lightweight, powerful and affordable, with DMR II support.
The BPR40d radio supports analog communications for simple, familiar push-to-talk voice. It also supports the Digital Mobile Radio (DMR II) communications standard, giving you more range and clear voice connections, even at the edge of your coverage. Long battery life means continued communication that lasts an entire shift. Rugged and IP54 water-resistant for worry-free operation, while the radio's two-year warranty brings peace of mind.
Performance Characteristics
Frequency Range:
UHF: 403 - 470 MHz
Power Output:
1W/4W
Number of Channels/Zones:
16 Channels
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
Digital: up to 15 hours
Analog: up to 12 hours
Channel spacing:
12.5/25 kHz
Physical Characteristics
User Environment
Operating temperature
-30° to +60° C (Radio Only)
Mil spec
810 C, 810 D, 810 E, 810 F
IP Standards
IP54
Key features
- Supports analog and digital communications
- UHF, VHF
- 16 channels
- 1 - 4.0 Watts (UHF) / 1 - 5.0 Watts (VHF) Output Power
- MIL-STD 810 & IP54-Rated Durability
- Analog/Digital Operation
- Up to 15 hours battery life
- Mixed-Mode Channel Scan
- Voice confirmation of button and knob actions
Rugged, Die-Cast Chassis
Polycarbonate housing helps protect your radio from everyday bumps and falls. Both radios are protected against splashing water (IPx4), while the BPR 40d is also protected against dust (IP54).
Digital Mobile Radio (DMR II) Support
Take advantage of advanced digital features, clear voice communications and greater coverage. Interoperate with other DMR radios.
Popular with these industries:
- Construction
- Education
- Hospitality
- Property Management
- Retail
Spec Sheets
 | PMAE4020AR Mag One UHF 450-470 MHz Stubby Antenna |
 | PMAE4104 Antenna |
 | PMNN4075 Li-ion High Capacity 1500 mAh Battery 7.2V, 1500 mAh, Li-ion, 12month warranty Motorola Mag One high capacity battery for the BPR40d. 25% more capacity than the standard battery and it uses li-ion chemistry to give you 20% more talk time with less weight. Belt clip not included. |
 | PMLN4743 Mag One 2" Spring Belt Clip |
| 25009297001 Power Adapter |
 | PMLN6531 Ear Receiver with In-Line Mic/PTT/VOX Switch (Mag One) |
 | PMLN6542 Mag One Ultra-Lite Headset, behind-the-head, adjustable with boom microphone and in-line push-to-talk |
 | PMMN4092 Remote Speaker Microphone - Mag One |
The Motorola BPR40d is available in the following models.
UHF
- AAH85EDJ8AD3AN 403-470 MHz, 4W (Ships 1W), 16 Channels
