BPR40

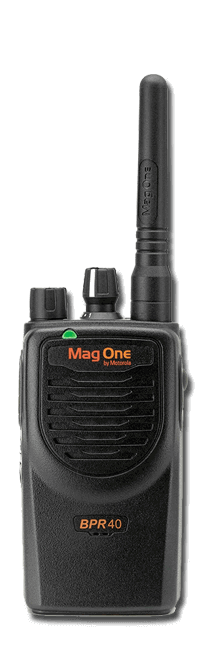

The BPR™40 portable two-way radio delivers reliable, intuitive communication through 8 channels and 2 programmable buttons. The high-/low-power option saves battery charge. Features such as nuisance channel delete and repeater talkaround make the radio a versatile, high-performance device. The BPR40 is part of the Mag One™ by Motorola radio portfolio. This affordable solution gives remarkable quality and value that is perfect for your business, and comes with a complete assortment of accessories to customize your radio.
Performance Characteristics
Frequency Range:
VHF:150 - 174 MHz; UHF: 450 - 470 MHz
Power Output:
1W/4W (UHF), 1W/5W (VHF)
Number of Channels/Zones:
8 or 16 Channels
Standard battery chemistry type:
Nickel Metal Hydride
Battery life (based on a 5-5-90 duty cycle):
8 hours (high power - 4W/5W); 11 hours (low power - 1W)
Channel spacing:
12.5/25 kHz
Physical Characteristics
Dimensions H x W x D (with standard battery)
4.21 x 2.28 x 1.46 in.
Weight (with standard battery)
12.3 oz
Keypad / Keys
No Keypad
Display
No Display
User Environment
Operating temperature
-30° to +60° C (Radio Only)
Mil spec
810 C, 810 D, 810 E, 810 F
IP Standards
IPX4
Key features
- Supports analog communications
- Supports analog and digital communications
- UHF, VHF
- 8 or 16 Channels
- 1 - 4.0 Watts (UHF) / 1 - 5.0 Watts (VHF) Output Power
- Analog/Digital Operation
- Up to 15 hours battery life
- Mixed-Mode Channel Scan
- Voice confirmation of button and knob actions
Rugged, Die-Cast Chassis
Polycarbonate housing helps protect your radio from everyday bumps and falls. Both radios are protected against splashing water (IPx4), while the BPR 40d is also protected against dust (IP54).
Digital Mobile Radio (DMR II) Support
Take advantage of advanced digital features, clear voice communications and greater coverage. Interoperate with other DMR radios.
Popular with these industries:
- Construction
- Education
- Hospitality
- Property Management
- Retail
 | PMAD4051AR Antenna Stubby VHF 150-174 MHz |
 | PMAE4020AR Mag One UHF 450-470 MHz Stubby Antenna |
 | PMNN4071 Battery NiMH 1200 mAh |
 | PMNN4075 Li-ion High Capacity 1500 mAh Battery 7.2V, 1500 mAh, Li-ion, 12month warranty Motorola Mag One high capacity battery for the BPR40. 25% more capacity than the standard battery and it uses li-ion chemistry to give you 20% more talk time with less weight. Belt clip not included. |
 | PMLN4742 Mag One Hard Leather Case |
 | PMLN4743 Mag One 2" Spring Belt Clip |
 | EPNN9288 90-134V, Switch Mode Power Supply with NA/LA Country Plug |
 | PMLN5041 Mag One Tri - Chemistry Rapid Charger Base |
 | PMLN5048 Mag One Tri - Chemistry Rapid Charger Kit Mag One Tri - Chemistry Rapid Charger Kit (includes Base, Power Supply & AC Cord) |
 | RLN6350 Mag One Rapid Charger, Li-ion Battery Bundle Kit Mag One Rapid Charger, Li-ion Battery Bundle Kit (includes PMLN5048_R and PMNN4075) |
 | RLN6393 Multi-Unit Charger |
 | PMLN4442 Earbud with In-Line Microphone |
 | PMLN4443 Ear Receiver with In-Line Microphone |
 | PMLN5001 D-Style Earpiece with MIC/PTT (2 Pin) |
 | PMLN4294 Earbud with Mic & PTT Combined |
 | PMLN4605 Replacement Clear Acoustic Tube |
 | PMLN4606 2-Wire Surveillance kit with Clear Acoustic Tube |
 | PMMN4001 Ultra-Light Earpiece with Boom Microphone and In-Line PTT |
 | RLN4894 Earpiece without Volume Control, Black (single wire) |
 | RLN4895 2 Piece Surveillance Kit, with Microphone and PTT Combined, Black (2-wire - rubber eartip style) |
 | RLN4941 Receive-Only Earpiece with Translucent Tube and Rubber Eartip An earphone jack located on the microphone allows the user to receive audio when using this earpiece. The translucent tube provides a more discreet option for those that need to receive messages privately |
 | PMLN4445 Ultra Lightweight Headset w/PTT |
 | PMLN5003 Lightweight Temple Transducer Headset |
 | PMLN5011 Temple Transducer Headset The PMLN5011 Temple Transducer Headset uses two bone vibration speakers for receiving, and a flexible boom microphone for transmitting. Unlike traditional headsets, the Temple Transducer allows the user's ears to be uncovered and completely free to hear surrounding environmental sounds while using the two-way portable radio. An in-line push-to-talk (PTT) button with clothing clip frees the user from holding the radio while communicating |
 | PMMN4077 Remote Speaker Microphone - Mag One |
 | AARLN4885 Receive-Only Covered Earbud with coiled cord |
The Motorola BPR40 is available in the following VHF and UHF models.
VHF
- AAH84KDS8AA1AN 150-174 MHz, 5W (Ships 1W), 8 Channels
- AAH84KDJ8AA1AN 150-174 MHz, 5W (Ships 1W), 16 Channels
UHF
- AAH84RCS8AA1AN 450-470 MHz, 4W (Ships 1W), 8 Channels
- AAH84RCJ8AA1AN 450-470 MHz, 4W (Ships 1W), 16 Channels
